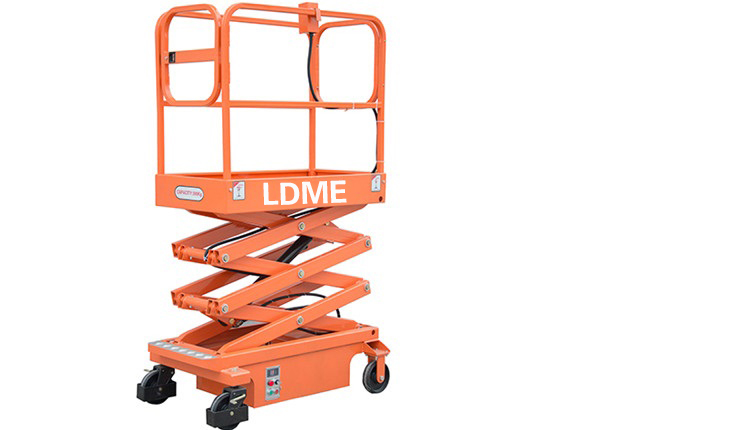

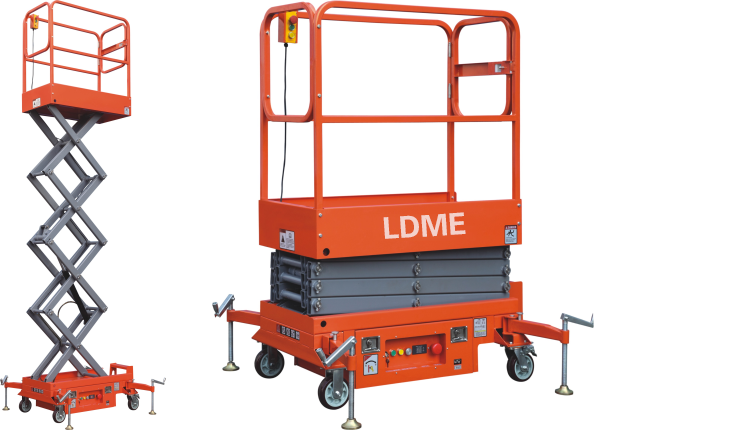

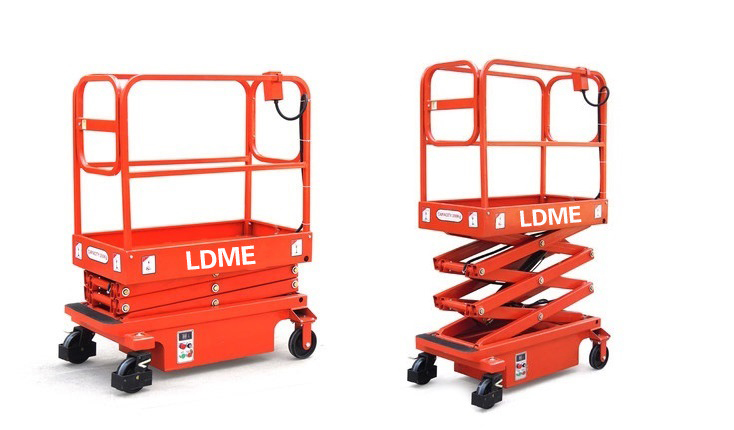

產品名稱：小型剪叉式高空作業平臺
|
型號規格 Model Number |
VAWP0117 | VAWP0118 | VAWP0194 | |
| 工作高度Working Height Maximum | 3700 | 5000 | 5900 | |
| 平臺高度Platform Height Maximum | mm | 1700 | 3000 | 3900 |
| 平臺最低高度Min.Platform Height | mm | 520 | 630 | 700 |
| 工作平臺尺寸Platform Size | mm | 1000×530 | 1170×600 | 1170×600 |
| 平臺額定載荷Lift Rated Capacity | kg | 300 | 300 | 300 |
| 上升時間Elevating Time | s | 10 | 33 | 33 |
| 下降時間Elevating Time | s | 7 | 30 | 30 |
| 舉升電機Lifting Motor | v/kw | 12/0.8 | 12/0.8 | 12/0.8 |
| 充電器Charger | V/A | 12/15A | 12/15A | 12/15A |
| 整機長度Overall Length | mm | 1140 | 1280 | 1300 |
| 整機寬度Overall Width | mm | 700 | 740 | 740 |
| 整機高度Overall Height | mm | 1620 | 1650 | 1750 |
| 整機重量Overall Net Weight | kg | 280 | 360 | 420 |
充電指示燈；
